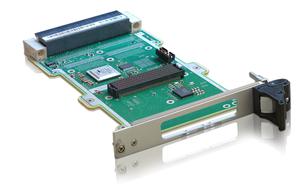

- 3U VPX Xilinx Virtex-5 FPGA Processor Board with FMC Site
- Availability:
- Available: Submit request for datasheets and more information.
VX3830 features a Xilinx Virtex-5 FPGA (XC5VLX20T) featuring a PCIe endpoint and User I/Os. VX3830 connects its FPGA endpoint to the backplane through a x4 PCIe gen 2 channel (P1 Wafers 1 to 4 is default build option). Selection between x4 or x1 PCIe width is user configurable.
VX3830 is available as a Convection Cooled or Conduction Cooled 3U VPX payload board. It requires +5V and +12V power supply rails. VX3830 is a member of Kontron's VPX Ecosystem and is qualified with VX3230 and VX3030 SBCs. Kontron also offers a VITA 57 FMC slot on VME products.
Kontron also offers a development kit containing: FMC-SER0 a sample FMC with wrapping areas, a simple FPGA IP and a Linux rpm with drivers, utilities and test programs. This kit allows non regression tests and is the base for customized derivative work.
Specifications
- Increased I/O Flexibility and Scalable Development Solutions
- x4 or x1 PCI-Express Backplane Interface
- Standard Air- and Rugged Conduction-Cooled Versions
- 0.8' (4 HP) or 1' (5 HP) Face Plates
Features
| Dimensions (H x W x D) | 99.85 mm x 162.54 mm; 0.8 inch face plate. (1 inch is a built option) |
| Interface | VPX: PCI-Express interface to VPX Data Plane 1 (P1 wafers 1 to 4). Interface to Data Plane 2 (P1 wafers 5 to 8) is a build option |
| Temperature | Standard Commercial: 0� to +55�C; Rugged Conduction-Cooled: -40� to +85�C |
| Cooling | Convection or Conduction |
| Operation Temperature | Standard Commercial: 0� to +55�C; Rugged Conduction-Cooled: -40� to +85�C |
| Altitude | Standard Commercial: -1,640 to 15,000 ft; Rugged Conduction-Cooled: -1,640 to 50,000 ft |
| Shock | Standard Commercial: 20g/11 ms Half Sine; Rugged Conduction-Cooled: 40g/11 ms Half Sine |
| Vibration | Standard Commercial: 20/500 Hz: 2g; Rugged Conduction-Cooled: 22/2,000 Hz: 2g |
| Humidity | Standard Commercial: 90% without condensation; Rugged Conduction-Cooled: 95% without condensation |
| Processor | Xilinx Virtex-5 FPGA |
Datasheets
VX3830 Datasheet
[ vx3830.pdf, 1.3 mb, Nov 27, 2013 ]
