- COMe-mCT10
- Manufacturer:
- Kontron
- Description:
- COM Express mini Type 10
- Availability:
- Available: Submit request for datasheets and more information.

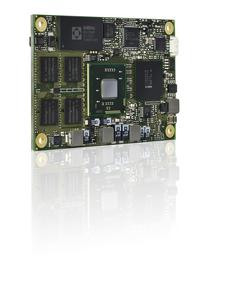

With onboard memory and optional flash as well as diversified graphics interfaces, the Kontron COMe-mCT10 series is optimized for the Industrial Automation, Infotainment and Medical markets to deliver outstanding graphics performance.
Specifications
- Intel Atom, D2000 & N2000 Series
- Valuable Dual Core technology
- Full-HD and Blu-ray support
- Onboard DDR3 system memory
Features
| Compliance | COM Express mini, Pin-out Type 10 |
| Dimensions (H x W x D) | 84 x 55 mm |
| CPU | Intel Atom, D2550 (2x 1.86GHz, 10W) Intel Atom, N2800 (2x 1.86GHz, 6.5W) Intel Atom, N2600 (2x 1.60GHz, 3.5W) |
| Chipset | Intel NM10 Express Chipset |
| Main Memory | up to 2GB DDR3-1066 memory down |
| Graphics Controller | Intel GMA 3650 (D2550, N2800) Intel GMA 3600 (N2600) |
| Ethernet Controller | Intel 82574L |
| Ethernet | 10/100/1000 Mbit LAN |
| Hard Disk | 2x SATA 3Gb/s |
| Flash Onboard | 2 - 64GB SATA NANDrive |
| PCI Express / PCI support | 3x PCIe x1 |
| Panel signal | DDI: DP++ LVDS: Single Channel 18/24bit |
| USB | 8x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) optional |
| Audio | Intel High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I_C, Staged Watchdog, RTC, MARS |
| BIOS | AMI Aptio (UEFI) |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
| Options | 1x PCIe x1 additional w/o onboard LAN Trusted Platfom Module TPM 1.2 2x UART SATA Flash (2-32GB SLC, 4-64GB MLC) Secure Boot |
| Power Management | ACPI 3.0, S5 Eco |
| Power Supply | 4.75V �� 20V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors |
| Operating System | Windows 7, WEC7, WES 7, Windows XP, Linux, VxWorks |
| Temperature | Commercial temperature: # 0�C to +60�C operating, -30�C to +85�C non-operating Extended temperature: # -25�C to +75�C operating, -30�C to +85�C non-operating Industrial temperature: # -40�C to +85�C operating, -40�C to +85�C non-operating |
| Supported Modules | 34005-xxxx-xx-x: COMe-mCT10, commercial temperature 34005-xxxx-xx-xEXT: COMe-mCT10, extended temperature |
Datasheets
Datasheet COMe-mCT10
[ datasheet_come-mct10.pdf, 1.15 mb, Sep 10, 2015 ]
Manuals
User's Guide COMe-mCT10
[ nup1m130.pdf, 1.88 mb, Dec 10, 2014 ]
Whitepapers
nanoETXexpress specification Rev. 2.0 (Release Candidate)�
[ nanoetxexpress-specification-rev-2-0.pdf, 0.3 mb, Nov 27, 2013 ]
Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com.0-rev.-2.0_en.pdf, 2.21 mb, Nov 27, 2013 ]
Technology Paper about COM Express Concept
Technology Paper about COM Express Concept - COM Express - One Concept, Ever Smaller.
[ com_expr_6seiter_11_2011_en_web.pdf, 2.77 mb, Nov 27, 2013 ]
Tech Spec Sheet
COM EXPRESS mini
[ tech-spec_comexpress-mini.pdf, 0.22 mb, Feb 29, 2016 ]
Variants
| COMe-mCT10 D2550 2GB/4GB 34005-2040-19-6 |  | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, D2550 2x1.86GHz, NM10 PCH, 2GB DDR3 memory down, 4GB SLC SSD | � |
| COMe-mCT10 N2800 1GB/4GB 34005-1040-19-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2800 2x1.86GHz, NM10 PCH, 1GB DDR3 memory down, 4GB SLC SSD | � |
| COMe-mCT10 N2600 2GB/4GB 34005-2040-16-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2600 2x1.60GHz, NM10 PCH, 2GB DDR3 memory down, 4GB SLC SSD, 2xUART | � |
| COMe-mCT10 N2600 1GB/4GB 34005-1040-16-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2600 2x1.60GHz, NM10 PCH, 1GB DDR3 memory down, 4GB SLC SSD | � |
| COMe-mCT10 D2550 2GB 34005-2000-19-6 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, D2550 2x1.86GHz, NM10 PCH, 2GB DDR3 memory down, 2xUART | � |
| COMe-mCT10 N2800 2GB 34005-2000-19-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2800 2x1.86GHz, NM10 PCH, 2GB DDR3 memory down, 2xUART | � |
| COMe-mCT10 N2600 2GB 34005-2000-16-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2600 2x1.60GHz, NM10 PCH, 2GB DDR3 memory down, 2xUART | � |
| COMe-mCT10 D2550 1GB 34005-1000-19-6 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, D2550 2x1.86GHz, NM10 PCH, 1GB DDR3 memory down | � |
| COMe-mCT10 N2800 1GB 34005-1000-19-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2800 2x1.86GHz, NM10 PCH, 1GB DDR3 memory down | � |
| COMe-mCT10 N2600 1GB 34005-1000-16-2 | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2600 2x1.60GHz, NM10 PCH, 1GB DDR3 memory down | � |
| COMe-mCT10 D2550 2/4GB E1 34005-2040-19-6EXT | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, D2550 2x1.86GHz, NM10 PCH, 2GB DDR3 memory down, 4GB SLC SSD, extended temperature version | � |
| COMe-mCT10 N2800 1GB E1 34005-1000-19-2EXT | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2800 2x1.86GHz, NM10 PCH, 1GB DDR3 memory down, extended temperature version | � |
| COMe-mCT10 N2600 2GB E1 34005-2000-16-2EXT | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2600 2x1.60GHz, NM10 PCH, 2GB DDR3 memory down, 2xUART, extended temperature version | � |
| COMe-mCT10 N2600 1GB E1 34005-1000-16-2EXT | | COM Express mini pin-out type 10 Computer-on-Module with Intel Atom, N2600 2x1.60GHz, NM10 PCH, 1GB DDR3 memory down, extended temperature version | � |
Accessories
| COMe Eval Carrier T10 34101-0000-00-1 |  | COM Express Evaluation Carrier Type 10 | more |
| COMe Ref.Carrier-i T10 34104-0000-00-0 |  | COM Express Reference Carrier Type 10 for industrial temperature | more |
| HSP COMe-mCT10 thread 34005-0000-99-0 | | HSP COMe-mCT10 thread | � |
| HSP COMe-mCT10 slim thread 34005-0000-99-2 | | HSP COMe-mCT10 slim thread | � |
| COMe mini Active Uni Cooler 34099-0000-99-0 | | COM Express mini Universal Active Cooler for Heatspreader Mounting (for CPU's | � |
| COMe mini Passive Uni Cooler 34099-0000-99-1 | | COM Express mini Universal Passive Cooler for Heatspreader Mounting (for CPU's | � |
| COMe mini Passive Uni Cooler Slim 34099-0000-99-2 | | COM Express mini Universal Passive Cooler Slim-line for Heatspreader Mounting (for 3-5W CPU's) | � |
| COMe mMount Kit 5/8mm 1set 34017-0000-00-0 | | COM Express Mounting Kit for COMe mini and 5mm/8mm Stand-Off | � |
