VX3327 - Kontron
Call for Price / Availability 888.528.9233
- Part:
- VX3327
- Manufacturer:
- Kontron
- Description:
- Versatile 3U VPX GPU/GPGPU board
- Availability:
- Available: Submit request for datasheets and more information.

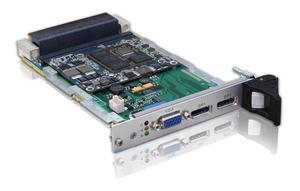

The Kontron VX3327 with AMD Radeon, E6760 graphics is drilled toward high-performance applications. VX3327 boasts 480 cores at 600 MHz and 1 GB GDDR5 for up to 576 GFlops single-precision floating-point performance.
VX3327 supports up to three independent displays through one VGA interface and two DisplayPorts, available as front or rear I/O. VX3327 is available in an air-cooled (0�C to +55�C) one inch (5HP) version and conduction-cooled (-40�C to +85�C) 0.8 inch (4HP) version.
Specifications
- ATI Radeon, E6760 Silicon
- Modular design: MXM 3.0 mezzanine
- High-End graphics GPU, parallel processing GPGPU
- Three independent Displays: one VGA and two DP
- Air-cooled and rugged conduction-cooled versions
Features
| Form Factor | MXM Version 3.0, Type A mounted on a 3U VPX carrier card (onboard PCIe retimer enhances signal integrity) |
| Display | One VGA port and 2 DisplayPorts, up to 30 bits per pixel |
| Interface | PCI-Express Base Specifi cation Revision 2.1, gen2 speed, ��1, ��2, ��4 and ��8 |
| Main Memory | 1 GB GDDR5, 128 bits, 800 MHz |
Datasheets
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
Datasheet VX3327
[ vx3327.pdf, 1.02 mb, Jan 10, 2014 ]
Whitepapers
Managing 3rd gen High Data Rates on VPX Backplanes [restrictions apply]
This white paper describes the key parameters that must be mastered to achieve high data rates on VPX architectures. It explains some of the technologies used by Kontron to operate VPX computers at top bandwidth (eg PCIe gen3, 10G Base KR)
[ whitepaper_vpx_highdatarates.pdf, 3.35 mb, Feb 11, 2014 ]
Warranty
10-Day Inspection Period: If the VX3327 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.
30-Day Warranty: The 30-Day warranty for VX3327 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:
1. Repair
2. Replacement
3. Refund
** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**
All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.
Warranty Options:
Our Standard Warranty: Warranty may vary dependent on product and manufacturer.
No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.
Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
