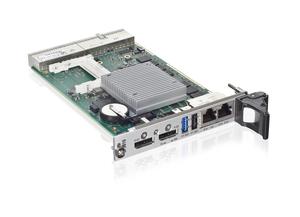

CP3010-SA - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP3010-SA
- Manufacturer:
- Kontron
- Description:
- Intel Atom, 3U CompactPCI CPU Board
- Availability:
- Available: Submit request for datasheets and more information.
design is based on Atom, technology, performance levels of former Core, 2 Duo platforms can be reached.
Further, the built-in graphics core now features Intel HD Graphics Technology offering an outstanding increase in graphics performance compared to previous Atom, designs.
Memory demanding applications can make use of up to 8GB soldered DDR3L running at 1333MHz. For onboard data storage the CP3010-SA offers a CFAST option or a soldered SATA Flash and a HDD/SSD option on the 8HP extension module.
Specifications
- Intel Atom, E38xx processors, up to quad-core 1.91 GHz
- Up to 8 GB 1333 MHz soldered DDR3L memory
- Design optimized for the extended temp. range - fanless up to +85�C
- CFast or soldered SATA Flash as boot device
- Comprehensive I/O capabilities: DisplayPort, USB 3.0/2.0, Gigabit Ethernet, SATA, CAN, Audio ...
- Fully EN50155 compliant
Datasheets
CP3010 Datasheet
CP3010 Datasheet September 2014
[ datasheet_cp3010-sa.pdf, 1.7 mb, Jun 25, 2015 ]
Datasheet EFI-BIOS EF401 for CP3010
[ datasheet_efibios-ef401-for-cp3010.pdf, 0.68 mb, Nov 7, 2014 ]
