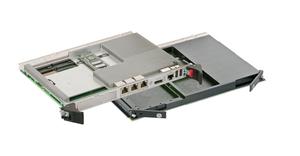

CP6003-RA_RC - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP6003-RA_RC
- Manufacturer:
- Kontron
- Description:
- CPCI/PICMG 2.16 Intel Core, i7 Second Generation System/Peripheral CPU Rugged Air, Rugged Conduction Cooled
- Availability:
- Available: Submit request for datasheets and more information.
Based on the Intel Core, i7 second generation processor and the QM67 platform controller hub, the CP6003-RA/RC is featured by dual or quad core computing performance at a reasonable thermal design power, including a complete set of data, communication and multimedia interfaces.
The CP6003-RA version is designed for harsh application requirements in air-cooled environments, where the CP6003-RC is made for conduction cooled environments.
With the 2.1 GHz Intel Core, i7-2715QE and the LV 2.2 GHz Intel Core,i7-2655LE, the CP6003-RA/RC has extraordinary performance per watt values. Up to 16 GByte of soldered DDR3 1333 MHz memory with ECC provide the foundation of demanding software applications.
Based on the Intel Mobile QM67 I/O controller hub the CP6003-RA/RC provides high graphics performance for VGA and two independent digital video outputs to the rear I/O as well as HDA audio capabilities.
Besides the outstanding graphics performance, the CP6003-RA/RC offers comprehensive I/O capability with up to 5x 1Gb Ethernet, 4 x rear I/O SATA with RAID 0/1/5/10 functionality, a local SATA Flash disk connector, as well as 6x USB 2.0, 2 x COM.
It can also accommodate a conduction cooled PMC/XMC slot for I/O intensive applications.
The board provides safety and security via an optional trusted platform module, (TPM 1.2), two redundant firmware hubs (failover) and IPMI support according PICMG 2.9 R1.0.
If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC
Specifications
- 4HP, single slot quad or dual core CPU rugged air or conduction cooled
- Scalable processor speed, Intel Core, i7 up to 2.2 GHz
- Up to 16GB DDR3 1333 MHz soldered memory with ECC
- 5x GigEthernet Interfaces via PCIExpress
- Latest IO technology with SATA Gen 3, RAID, SSD
- XMC/PMC + SSD Flash configuration possible
- Rear I/O supporting PICMG 2.16
Features
| CPU | Intel Core, i7 Second Generation |
| DRAM | up to 16GByte with ECC, DDR3 soldered |
| Chipset | Intel QM67 platform controller hub |
| 4HP Version | CP6003-RA: Displayport, 3x Ethernet, 2x USB, LEDs, Reset, PMC/XMC cutout |
| Additional | Watchdog, Hardware Monitor, Trusted Platform Module 1.2 (optional) |
| Cache | up to 6MB last level cache |
| DRAM speed | up to 1333 MHz |
| Ethernet | 5x Gigabit, CP6003-RA: 1x to front, 2x front/rear; 2x to rear; CP6003-RC: 4x rear; PICMG 2.16 compliant; |
| Flash Disk | SSD Flash Module up to 32GB |
| Frontpanel | CP6003-RA: Displayport, 3x Ethernet, 2x USB, LEDs, Reset, PMC/XMC; CP6003-RC: none |
| Graphics | QM67 internal, independant screens, VGA, DVI, HDMI |
| IPMI | Yes (IPMI V1.5) |
| PMC | 1x slot XMC PCIe x8 or 1x slot PMC 64-bit/100 MHz |
| Power Consumption | Quad Core 2.1GHz max. 60W; Dual Core LV 2.2 GHz max 40W |
| SATA | 4x SATA II, RAID 0/1/5/10 capabilities; onboard SATA III SSD disk option |
| System peripheral | System / Stand alone |
| Temperature/Humidity | CP6003-RA/RC Dual Core: -40 to 70�C; CP6003-RA/RC 2.1 GHz Quad Core: -40 to +55�C; extended temp. versions on request; 93% rel. humidity |
| USB | 6x USB 2.0 max. |
Datasheets
CP6003-RA / CP6003-RC Data Sheet
[ datasheet_cp6003_ra_rc.pdf, 0.78 mb, Nov 30, 2015 ]
Datasheet for Wind River VxWorks BSP
[ dat_vxw69_bsp_b3c01_r11_01.pdf, 0.77 mb, Nov 27, 2013 ]
Datasheet for Linux BSP B3C01
[ dat_lin_bsp_b3c01_2.pdf, 0.86 mb, Nov 5, 2014 ]
Manuals
CP6003-SA IPMI Manual
[ 1045-5656_20_sk-man-cp6003-sa_ra_rc-ipmi-fw.pdf, 0.23 mb, Nov 27, 2013 ]
CP6003-SA uEFI BIOS Manual
[ 1045-9149_20_sk-man-uefi-bios-cp6003-sa_ra_rc.pdf, 0.23 mb, Nov 27, 2013 ]
CP6003-RA/RC Introduction Manual
[ 1046-3890_10_sk-man-cp6003-ra_rc_introduction.pdf, 0.27 mb, Nov 27, 2013 ]
CP6003-RA/RC User Manual [restrictions apply]
[ 1046-3890_10_sk-man-cp6003-ra_rc.pdf, 1.14 mb, Nov 27, 2013 ]
