VX3230 - Kontron
Call for Price / Availability 888.528.9233
- Part:

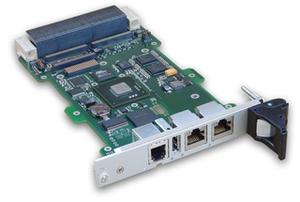

- VX3230
- Manufacturer:
- Kontron
- Description:
- 3U VPX PowerPC SBC
- Availability:
- Available: Submit request for datasheets and more information.
The VX3230 and its 1 GHz 8544 powerPC processor gives you coolest implementation of a E500 core with plenty of features.
Learn more: Rugged & COTS Technologies
Specifications
- VX3230 SBC implements VITA 46.0, 46.4, 46.7, 46.9
- PCIe (4x), SATA, Gigabit Ethernet on the VPX Backplane
- 1 GHz Freescale MPC8544 32-bit PowerPC Processor
- Easy Bring Up: Turnkey 3U VPX Computer Offering
Features
| CPU | Freescale MPC8544E |
| DRAM | 1 GB of DDR2-533 SDRAM, ECC support |
| CPU Clock | 1 GHz |
| RTM Support | RTM Panel Connectors: Ethernet (x2), USB, Serial COM1 - RTM Onboard Connectors: SATA (x3), Serial COM2, GPIO (x2) |
| Frontpanel | Two build options: (1) XMC/PMC - (2) Dual Gigabit Ethernet + USB + Serial connectors |
| Power Consumption | 15W typical |
| Ethernet | Dual Gigabit Ethernet: configurable either on the front panel or on the rear VPX backplane connector |
| CPU L2 Cache | 256 KB |
| Flash Disk | User Flash: Socket for USB Flash Disk, Low Profile, 2 pitch connector, 4, 8 and 16 GB sizes available |
| Flash Onboard |
Datasheets
VX3230 Datasheet
[ datasheet_vx3230.pdf, 1.1 mb, Nov 19, 2015 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ komsa-supportbrochure-2015v.pdf, 0.98 mb, May 19, 2015 ]
Manuals
VX3230 User's Guide [restrictions apply]
[ cadta63-4e-vx3230-ug.pdf, 3.08 mb, Nov 3, 2015 ]
VX3230 U-Boot User Manual [restrictions apply]
[ sddtf46-2e-vx3230-uboot.pdf, 0.59 mb, Nov 27, 2013 ]
VX3230 PBIT User's Guide [restrictions apply]
[ sddtf48-1e-vx3230-pbit.pdf, 0.28 mb, Jun 29, 2015 ]
EZ3-VX3230 Getting Started - EZ3-VX3230-00-1K - Wind River VxWorks Live USB Evaluation [restrictions apply]
EZ3-VX3230 Getting Started - EZ3-VX3230-00-1K - Wind River VxWorks Live USB Evaluation
[ sddtf68.pdf, 1.36 mb, Nov 27, 2013 ]
EZ3-VX3230-0P-V Quick Start [restrictions apply]
EZ3-VX3230-0P-V Quick Start
[ sddtf61-ez3-vx3230.pdf, 0.14 mb, Nov 27, 2013 ]
EZ3-VX3230 Getting Started - EZ3-VX3230-00-L - EZ3-VX3230-00-V - EZ3-VX3230-0P-V [restrictions apply]
EZ3-VX3230 Getting Started - EZ3-VX3230-00-L - EZ3-VX3230-00-V - EZ3-VX3230-0P-V
[ sddtf52-ez3-vx3230.pdf, 0.72 mb, Nov 27, 2013 ]
EZ3-VX3230-00-L Quick Start [restrictions apply]
EZ3-VX3230-00-L Quick Start
[ sddtf53.pdf, 0.11 mb, Nov 27, 2013 ]
