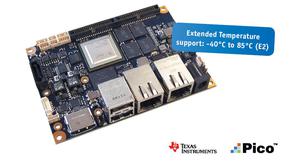

KTAM3874/pITX - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KTAM3874/pITX
- Manufacturer:
- Kontron
- Description:
- "Ultrasmall 2.5"" Pico-ITXboard with TI Cortex A8 ARM Processor,1GB DDR3, 4GB NAND Flash, Linux preloaded to Flash"
- Availability:
- Available: Submit request for datasheets and more information.
The Kontron Pico-ITX, board based on the ARM Cortex A8 single-core processor boasts a low TDP (Thermal Design Power) which makes it extremely suitable for compact, fanless applications. It is also the first Kontron motherboard designed from scratch for the extended temperature range of -40 �C to 85 �C. It is therefore fit to cope with even the most adverse environmental conditions. Examples of application areas for the new Kontron Pico-ITX, motherboard are autonomous battery- or solar-powered outdoor systems or mobile or stationary dual-display applications like Box PCs, HMIs and thin clients. The target markets include building and home automation, industrial automation, digital signage and transportation as well as medical and military.
For the KTAM3874/pITX with energy-efficient ARM processor technology Kontron has announced a minimum of 7 years long-term availability. On its 100 x 72 mm sized standard small form factor this highly integrated motherboard offers everything that developers need to realize complete systems: an extensive range of interfaces and on-board Flash memory mean that there is no need for OEMs to source any additional components. A SIM card slot and the low average power consumption of less than 5 watts even facilitate the development of appliances in self-sufficient continuous operation in environments without power supply or network lines.
Specifications
- Single core Cortex A8 TI AM3874 SitaraTM ARM CPU up to 800 MHz
- Operating -40�C to +85�C (E2)
- HDMI / 24-bit LVDS (2 independent outputs)
- 2x RS232, 1x RS232/485, 2xCAN bus, 4x USB, up to 26x GPIOs (TTL), I2C, SPI
- 2x 10/100 Mbs LAN, 1x SATA or mSATA on mPCIe connector
- mPCIe slot w. SIM card support & micro SD slot
- Onboard 1GB DDR3 Memory (up to 2GB optionally)
Features
| Form Factor | Pico-ITX |
| Dimensions (H x W x D) | 100 x 72 mm |
| CPU | TI AM3874 SitaraTM up to 800 MHz ARM CortexTM-A8 |
| Chipset | - |
| Main Memory | 1GB Dual 32bit DDR3-800 memory onboard (up to 2 GB optional) |
| Graphics | 2 independent graphic outputs 1x HDMI 1.3a, up to 1080p 1x LVDS dual channel 24bit, up to 1080p |
| Ethernet | 2x 10/100 Mb/s Ethernet with integrated optional switch |
| Hard Disk | 1x microSD card slot Onboard 4GB eMMC Nand flash (optionally up to 16GB) |
| SATA | 1x SATA 2.0 1x mSATA shared with mPCIe |
| PCI Express / PCI support | 1x mPCIe 2.0 port (x1 lane) |
| USB | 4x USB 2.0 (2 on front I/O, 2 internal (1x USB client)) 1x USB 2.0 on mPCIe connector |
| Serial | 2x RS232 1x RS232/485 |
| Audio | Analog audio interface (Line-In, Line-Out, Mic-In) 1 W Speaker interface |
| I/Os | 26x GPIOs 1x I2C 2x CAN Bus 1x UART Timer and SPI output shared with GPIO�s 1x SIM-card slot onBoard for mPCIe modem cards |
| Operating System | WEC7 Linux, Android |
| Operation Temperature | -40�C to +85�C (E2) |
| Cooling |
| Power Supply | Single supply 5V DC |
| MTBF | System MTBF (hours): 220883 Please find the test environment in the manual |
| Compliance | RoHS |
| Power Consumption | 4.9 W Idle |
Datasheets
Datasheet KTAM3874/pITX (Release Candidate)�
[ datasheet_ktam3874-pitx.pdf, 0.97 mb, Dec 17, 2015 ]
Manuals
KTAM3874/pITX Software Guide
[ ktd-s0057-h_ktam3874-pitx_softwareguide.pdf, 5.11 mb, Jun 5, 2014 ]
KTAM3874/pITX Users Guide
[ ktd-s0051-d_ktam3874-pitx_usersguide.pdf, 1.79 mb, Nov 27, 2013 ]
Tech Spec Sheet
Tech Specs PICO-ITX
[ tech-spec_pico-itx.pdf, 0.24 mb, Feb 29, 2016 ]
Variants
| KTAM3874/pITX 03005-1040-90-0 | | Ultrasmall 2.5' Pico-ITXboard with TI Cortex A8 ARM Processor,1GB DDR3, 4GB NAND Flash, Linux preloaded to Flash | more |
Accessories
| Universal Accessory-Kit ARM Pico-ITX 03101-0000-00-S5 |  | 1x KAB-AC power 2pin euro cable, 1x KAB-SOUND-CMP-2 cable, 1x AC/DC-Adapter 5V 4A, 1x Power/Reset Push Button Set, 1x KAB-USB-2 cable, 1x KAB-SATA-1 cable, 1x Power Cord US cable, 1x KAB-ADAPT-DSUB-9-2 | � |
