AM4140 Kontron | Atlas Automation

Part:: AM4140
Manufacturer:: Kontron
Description:: Processor AMC based on Freescale QorIQ P4080
Availability:: Available: Submit request for datasheets and more information.

The AM4140 is a data plane CPU board implemented as Single Mid-Size Advanced Mezzanine Card (AMC) for MicroTCA applications. The design is based on the Freescale QorIQ P4080 8-Core processor, with cores based on the e500 Power Architecture. Due to the P4080 processor, the AM4140 meets highest demands in multi-threaded processing: in combination with high-speed fabrics and frame handlers, the multi-core architecture allows high throughputs, as well as low latencies. To match demands on high-performance, the AM4140 provides a high-speed dual-channel memory with up to 8 GB ECC-RAM. In order to grant reliability of the application, the AM4140 features redundant U-Boot.

Specifications

Freescale QorIQ P4080 �� 8-core CPU @ 1.5GHz
Serial Rapid IO, PCIe and 1/10GbE fabrics
Fast dual-channel memory (up to 8 GB RAM with ECC)
Useable in managed (with MCH) and unmanaged (without MCH) systems
Long life cycle beyond 7 years

Datasheets

Datasheet AM4140
[ datasheet_am4140.pdf, 1.01 mb, Jan 22, 2016 ]

Datasheet Linux BSP D0801 for AM4140
[ dat_lin_bsp_d0801.pdf, 0.31 mb, Nov 27, 2013 ]

Datasheet Wind River Linux BSP for D0801 platform
[ dat_lin_bsp_wr_d0801_r10_01.pdf, 0.36 mb, Nov 27, 2013 ]

Datasheet Wind River VxWorks BSP for D0801 platform
[ dat_vxw69_bsp_d0801_r11_01.pdf, 0.87 mb, Nov 27, 2013 ]

Manuals

AM4140 User Manual [restrictions apply]
[ 1046-4973_10_sk-man-am4140.pdf, 0.64 mb, Nov 27, 2013 ]

AM4140 Introduction Manual
[ 1046-4973_10_sk-man-am4140_introduction.pdf, 0.19 mb, Nov 27, 2013 ]

AM4140 U-Boot Bootloader User Manual
[ 1052-0281_10_sk-man-am4140-u-boot.pdf, 0.18 mb, Nov 27, 2013 ]

AM4140 IPMI Firmware User Manual
[ 1051-8188_10_sk-man-am4140-ipmi-fw.pdf, 0.23 mb, Nov 27, 2013 ]

Warranty

10-Day Inspection Period: If the AM4140 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.

30-Day Warranty: The 30-Day warranty for AM4140 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:

1. Repair

2. Replacement

3. Refund

** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**

All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.

Warranty Options:

Our Standard Warranty: Warranty may vary dependent on product and manufacturer.

No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.

Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.

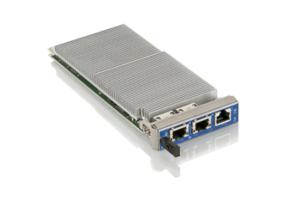

AM4140 - Kontron
