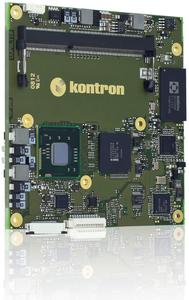

- COMe-cCT6
- Manufacturer:
- Kontron
- Description:
- COM Express compact Type 6
- Availability:
- Available: Submit request for datasheets and more information.
Specifications
- Intel Atom, D2000 & N2000 Series
- Valuable Dual Core technology
- Full-HD and Blu-ray support
Features
| Compliance | COM Express compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel Atom, D2550 (2x 1.86GHz, 10W) Intel Atom, N2800 (2x 1.86GHz, 6.5W) Intel Atom, N2600 (2x 1.60GHz, 3.5W) |
| Chipset | Intel NM10 Express Chipset |
| Main Memory | 1x DDR3-1066 SO-DIMM up to 4GB |
| Graphics Controller | Intel GMA 3650 (D2550, N2800) Intel GMA 3600 (N2600) |
| Ethernet Controller | Intel 82574L |
| Ethernet | 10/100/1000 Mbit Ethernet |
| Hard Disk | 2x SATA 3Gb/s |
| Flash Onboard | 2 - 64GB SATA NANDrive |
| PCI Express / PCI support | 3x PCIe x1 |
| Panel signal | DDI1: DP++ DDI2: DP++ DDI3: - VGA: Yes LVDS: Dual Channel 18/24bit |
| USB | 8x USB 2.0 2x USB 3.0 optional (TI TUSB7320) |
| Serial | 2x serial interface (RX/TX only) optional |
| Audio | Intel High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I_C, Staged Watchdog, RTC, MARS |
| BIOS | AMI APTIO (UEFI) |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
| Options | 1x PCIe x1 additional w/o onboard LAN 2x USB 3.0 (TI TUSB7320) Trusted Platfom Module TPM 1.2 2x UART SATA Flash (2-32GB SLC, 4-64GB MLC) Secure Boot |
| Power Management | ACPI 3.0, S5 Eco |
| Power Supply | 4.75V �� 20V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors |
| Operating System | Windows 7, WES7, WEC7, Windows XP, Linux, VxWorks |
| Temperature | Commercial temperature: # 0�C to +60�C operating, -30�C to +85�C non-operating Extended temperature: # -25�C to +75�C operating, -30�C to +85�C non-operating Industrial temperature: # -40�C to +85�C operating, -40�C to +85�C non-operating |
| Supported Modules | 36011-xxxx-xx-x: COMe-cCT6, commercial temperature 36011-xxxx-xx-xEXT: COMe-cCT6, extended temperature |
Datasheets
Datasheet COMe-cCT6
[ datasheet_come-cct6.pdf, 0.9 mb, Sep 4, 2015 ]
Manuals
User's Guide COMe-cCT6
[ uup6m130.pdf, 1.93 mb, Jan 16, 2015 ]
Whitepapers
COM Express Design Guide by PICMG, Rev. 2.0
PICMG Guidelines for designing COM Express Carrier Boards, Rev. 2.0
[ picmg_comdg_2.0-released-2013-12-06.pdf, 3.11 mb, Feb 11, 2014 ]
Case Study: UL Certified COMs Deliver Quality
[ wp_ul_2007.pdf, 0.13 mb, Nov 27, 2013 ]
Technology Paper about COM Express Concept
Technology Paper about COM Express Concept - COM Express - One Concept, Ever Smaller.
[ com_expr_6seiter_11_2011_en_web.pdf, 2.77 mb, Nov 27, 2013 ]
Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com.0-rev.-2.0_en.pdf, 2.21 mb, Nov 27, 2013 ]
Tech Spec Sheet
COM EXPRESS compact
[ tech-spec_comexpress-compact.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| COMe-cCT6 D2550 4GB 36011-0040-19-7 |  | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, D2550 2x1.86GHz, NM10 PCH, 1x DDR3 SO-DIMM socket,2x UART, 4GB SLC SSD, TPM, USB 3.0 | � |
| COMe-cCT6 D2550 36011-0000-19-6 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, D2550 2x1.86GHz, NM10 PCH, 1x DDR3 SO-DIMM socket | � |
| COMe-cCT6 N2800 36011-0000-19-2 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, N2800 2x1.86GHz, NM10 PCH, 1x DDR3 SO-DIMM socket | � |
| COMe-cCT6 N2600 36011-0000-16-2 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, N2600 2x1.60GHz, NM10 PCH, 1x DDR3 SO-DIMM socket | � |
| COMe-cCT6 N2600 SER 36011-0000-16-3 | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, N2600 2x1.60GHz, NM10 PCH, 1x DDR3, 2x UART SO-DIMM socket | � |
| COMe-cCT6 D2550 E1 36011-0000-19-6EXT | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, D2550 2x1.86GHz, NM10 PCH, 1x DDR3 SO-DIMM socket, extended temperature version | � |
| COMe-cCT6 N2800 E1 36011-0000-19-2EXT | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, N2800 2x1.86GHz, NM10 PCH, 1x DDR3 SO-DIMM socket, extended temperature version | � |
| COMe-cCT6 N2600 E1 36011-0000-16-2EXT | | COM Express compact pin-out type 6 Computer-on-Module with Intel Atom, N2600 2x1.60GHz, NM10 PCH, 1x DDR3 SO-DIMM socket, extended temperature version | � |
Accessories
| COMe Eval Carrier T6 38106-0000-00-0 |  | COM Express Evaluation Carrier Type 6 | more |
| COMe Ref.Carrier T6 38114-0000-00-0 |  | COM Express Reference Carrier Type 6 | more |
| HSP COMe-cCT6 thread 36011-0000-99-0 | | Heatspreader for COMe-cCT6, threaded mounting holes | � |
| HSP COMe-cCT6 through 36011-0000-99-1 | | Heatspreader for COMe-cCT6, through holes | � |
| COMe Active Uni Cooler (w/o HSP) 36099-0000-99-0 | | COM Express Universal Active Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| COMe Passive Uni Cooler (w/o HSP) 36099-0000-99-1 | | COM Express Universal Passive Cooler for Heatspreader Mounting (87x78x14.3mm) (for CPU's | � |
| KAB-HSP 200mm 96079-0000-00-0 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 200mm | � |
| KAB-HSP 40mm 96079-0000-00-2 | | Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 40mm | � |
| COMe Mount Kit 5mm 1set 38017-0000-00-5 | | COM Express Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 5mm 100sets 38017-0100-00-5 | | COM Express Mounting Kit 5mm 100 sets | � |
| COMe Mount KIT 8mm 1set 38017-0000-00-0 | | COM Express Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 8mm 100sets 38017-0100-00-0 | | COM Express Mounting Kit 8mm 100sets | � |
| DDR3-1600 SODIMM 1GB 1060-2506 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800 | � |
| DDR3-1600 SODIMM 2GB 97015-2048-16-0 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800 | � |
| DDR3-1600 SODIMM 4GB 97015-4096-16-0 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800 | � |
| DDR3-1600 SODIMM 1GB E2 97015-1024-16-2 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3-1600 SODIMM 2GB E2 97015-2048-16-2 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800, industrial temperature -40�C to +85�C | � |
| DDR3-1600 SODIMM 4GB E2 97015-4096-16-2 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800, industrial temperature -40�C to +85�C | � |
