CP3002-RC / CP3002-RA - Kontron
Call for Price / Availability 888.528.9233
- Part:
- CP3002-RC / CP3002-RA
- Manufacturer:
- Kontron
- Description:
- Conductive-cooled / air-cooled Intel Core, i7 CPU board
- Availability:
- Available: Submit request for datasheets and more information.

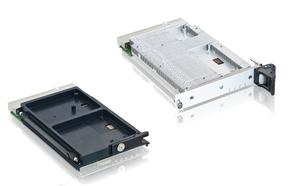

The CP3002-RC is a rugged, conductive-cooled version with heat spreader. The CP3002-RA comes as a rugged,
air-cooled version with a front panel and a heat sink for forced airflow cooling. The board uses the highly efficient
2.0 GHz Intel Core, i7-620LE combined with the Mobile Intel QM57 Express Platform Controller Hub.
The processor comes with two cores each supporting two parallel threads (Intel Hyper-Threading technology)
enabling processing of up to four simultaneous threads. The next generation graphics core offers superior 3D
and video performance resulting in a up to twice the graphics performance as compared with previous platform designs.
Memory demanding applications can make use of up to 8GB soldered DDR3 SDRAM, with ECC support.
For onboard data storage the CP3002-RC/-RA offers either a 16GB or 32GB SATA NAND Flash module.
Designed to withstand even the toughest environmental conditions, the CP3002-RC/-RA is VITA 47 compliant against temperature and shock and vibration requirements.
Specifications
- Highest performance based on latest Intel Core, technology Core i7-620LE 2.0 GHz
- Up to 8GB soldered DDR3 memory, with ECC support
- VITA 47 compliant
- Integrated SATA NAND Flash module (SSD), up to 32GB
- Optional TPM support
- Broad rear I/O connectivity: GbE, USB, SATA, Serial Ports, VGA, GPIO's ...
- Broad range of software support: Linux, VxWorks, Wind River Linux, Windows XP, Windows 7, Windows Embedded Standard 7, Windows Server 2003/2008, QNX �_
Features
| CPU | Intel Core,i7 2.0 GHz |
| DRAM | Max 8 GByte DDR3 soldered, with ECC |
| Chipset | QM57 |
| DRAM speed | 1066 MHz |
| Ethernet | 4x 1000Base-Tx rear, WOL (Wake-On-LAN) support |
| Flash Disk | SATA NAND Flash Module, up to 32GB |
| Graphics | internal |
| Power Consumption | Typ. 31W |
| Rear I/O | 4x GbE, 2x USB, VGA, 2x COM, 2x SATA, GPIO's |
Datasheets
Datasheet CP3002-RA/-RC
[ datasheet_cp3002-rc-ra.pdf, 1.41 mb, Sep 23, 2015 ]
Datasheet QNX Neutrino RTOS BSP for B3001 platform
[ dat_qnx_bsp_b3001_r10_01.pdf, 0.31 mb, Nov 27, 2013 ]
Datasheet for Wind River Linux BSP
[ dat_lin_bsp_wr_b3001_01.pdf, 0.76 mb, Jan 21, 2015 ]
Datasheet for Linux BSP B3001
[ dat_lin_bsp_b3001_r14.pdf, 0.78 mb, Nov 27, 2013 ]
Datasheet for Linux installation image B3001
for AM4020, AM5020, CP6002, CP3002, CP3002-RC, CP3002-RA
[ dat_lin_img_b3001_r13.pdf, 1.05 mb, Jan 21, 2015 ]
Datasheet for Wind River VxWorks BSP
[ dat_vxw_bsp_b3001_01.pdf, 0.83 mb, Nov 27, 2013 ]
Manuals
CP-RIO3-05 User Manual
[ 1044-0711_10_sk-man-cp-rio3-05.pdf, 0.19 mb, Nov 27, 2013 ]
CP3002-RC / CP3002-RA User Manual [restrictions apply]
[ 1039-3625_20_sk-man-cp3002-rc_cp3002-ra.pdf, 0.52 mb, Apr 20, 2016 ]
CP3002-RC / CP3002-RA Introduction Manual
[ 1039-3625_10_sk-man-cp3002-rc_cp3002-ra_introduction.pdf, 0.14 mb, Nov 27, 2013 ]
CP3002 / CP3002-RC / CP3002-RA uEFI Manual
[ 1042-8946_40_sk-man-uefi-bios-cp3002_cp3002-rc_cp3002-ra.pdf, 0.28 mb, Apr 20, 2016 ]
Variants

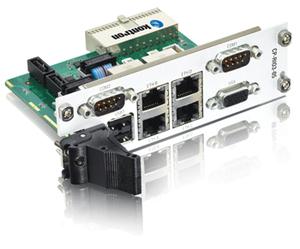

| CP-RIO3-05 |  | Rear I/O module for CP3002-RC and CP3002-RA | more |
