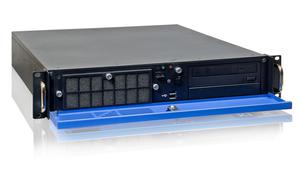

KISS 2U KTQ67 Low profile - Kontron
Call for Price / Availability 888.528.9233
- Part:
- KISS 2U KTQ67 Low profile
- Manufacturer:
- Kontron
- Description:
- Supporting 4 Low profile cards full length
- Availability:
- Available: Submit request for datasheets and more information.
The new technologies featured in the Intel Q67 Express chipset are an Intel Trusted Platform Module (Intel TPM) and enhancements to Intel Active Management Technology release 7.0 which include: Remote Alerts, secured access in Microsoft* NAP* environments, Access Monitor, Fast Call for Help, and Remote Scheduled Maintenance.
Specifications
- Hot Swap chassis fans
- 4 free low profile and full length slots
- I3/I5I/I7 second Gen CPUs
- Extrem reliable
- Redundant PSU
- 24V DC or 48VC PSU
Features
| CPU | Intel i3-2120 3,3GHz,Intel i5-2400 3,1GHz,Intel i7-2600 3,4GHz |
| Chipset | Intel Q67 Chipset |
| Approvals | CE, designed to meet UL |
| Connectivity | Front: 2* USB 2.0, REAR: 2* COM,VGA,2* Displayport,HD Audio,6* USB 2.0, 3* LAN 10/100/1000 |
| Cooling | 2* Hot swap chassis fans |
| Dimensions (H x W x D) | 2U x 1 inch x 472 mm |
| Drives | 1 x 3,5 bay, 1 x 5,25, 1 x 3,5' int |
| Free Slots | 2 x PCI 32 Bit ,1x PCI_e x 16, 1 x PCI_e x 4 ( all low profile ) |
| Front Side Bus | 800/1066/1333 |
| Main Memory | Up to 16 GB DDR 3 |
| Mounting | Rack Mount, Desktop, Tower |
| Power Supply | 115/230V AC 400 W 80+, optional AC redundant, optional 24 VDC or 48VDC |
| RAID | on Board RAID 0, 1, 5 and 10, KISS Stor, KISS DA with RAIDcontroller |
| System Monitoring | By API |
| Temperature | Operating: 0-50 Degrees/C |
| Verified OS | WIN XP, Windows 7 32 Bit, Windows 7 64 Bit, Linux |
| Weight | ~ 11 kg |
Datasheets
Datasheet KISS 2U V2 KTQ67-LowProfile
[ datasheet-kiss-2u-v2-ktq67-lowprofile.pdf, 0.83 mb, Jan 7, 2015 ]
Manuals
KISS 2U V2_Benutzerhandbuch_V1_00
[ kiss-2u-v2_benutzerhandbuch_v1_00_de_web.pdf, 1.9 mb, Nov 27, 2013 ]
KISS_2U V2_User_Guide_V1_00
[ kiss_2u-v2_user_guide_v1_00_en_web.pdf, 1.89 mb, Nov 27, 2013 ]
Tech Spec Sheet
Tech Specs KISS
[ tech-specs-kiss.pdf, 0.51 mb, Feb 29, 2016 ]
Variants
| KISS Stor Slim KISS Stor Slim |  | 3,5' RAID 1 subassembly integrated RAID contoller | more |
| KISS DA425 KISS DA425 |  | Disk Array for 4x 2.5' Hard drives | more |
| KISS DA135 KISS DA135 |  | Rugged removable HDD carrier | more |
| KISS DA225 KISS DA225 |  | SAS/SATA two in one | more |

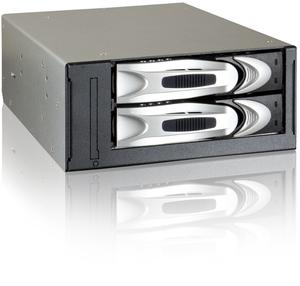

| KISS DA235CF KISS DA235CF |  | 2 Hot swap HDDs plus CF accessible | � |
