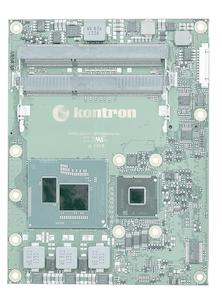

COMe-bBL6 - Kontron

Part:

COMe-bBL6

Manufacturer:

Kontron

Description:

COM Express basic Type 6

Availability:

Available: Submit request for datasheets and more information.

Specifications

Variants

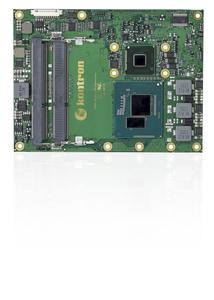

COMe-bBL6RXT		COM Express BASIC TYPE 6	�
COMe-bBL6 i7-5700EQ 38027-0000-26-7		COM Express basic pin-out type 6 Computer-on-Module with Intel Core, i7-5700EQ, 4x2,6GHz QM87 PCH, 2x DDR3L SO-DIMM	�
COMe-bBL6 i7-5850EQ 38027-0000-27-7		COM Express basic pin-out type 6 Computer-on-Module with Intel Core, i7-5850EQ, 4x2,7GHz QM87 PCH, 2x DDR3L SO-DIMM	�
COMe-bBL6RXT i7-5700EQ 38028-0000-26-7		COM Express basic pin-out type 6 Computer-on-Module with Intel Core, i7-5700EQ, 4x2,6GHz, QM87 PCH, 2x DDR3L ECC SO-DIMM, Rapid Shutdown, industrial temperature grade	�
COMe-bBL6RXT i7-5850EQ 38028-0000-27-7		COM Express basic pin-out type 6 Computer-on-Module with Intel Core, i7-5850EQ, 4x2.7GHz, QM87 PCH, 2x DDR3L ECC SO-DIMM, Rapid Shutdown, industrial temperature grade	�

Accessories

COMe Eval Carrier T6 38106-0000-00-0		COM Express Evaluation Carrier Type 6	more
COMe Ref.Carrier T6 38114-0000-00-0		COM Express Reference Carrier Type 6	more
HSP COMe-bHL6/bBL6 heatpipe thread 38025-0000-99-2		Heatspreader for COMe-bHL6/bBL6 with heatpipe, threaded mounting holes	�
HSP COMe-bHL6/bBL6 heatpipe through 38025-0000-99-3		Heatspreader for COMe-bHL6/bBL6 with heatpipe, through holes	�
HSP COMe-bHL6/bBL6 Cu-core threaded 38025-0000-99-0		HSP COMe-bHL6/bBL6 Cu-core threaded mounting holes	�
HSK COMe-bHL6/bBL6 active (w/o HSP) 38025-0000-99-0C05		Active Cooler for COMe-bHL6/bBL6 to be mounted on HSP	�
HSK COMe-bHL6/bBL6 passive (w/o HSP) 38025-0000-99-0C06		Passive Cooler for COMe-bHL6/bBL6 to be mounted on HSP	�
KAB-HSP 200mm 96079-0000-00-0		Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 200mm	�
KAB-HSP 40mm 96079-0000-00-2		Fan cable adapter for 3pin standard FAN connector to 3pin molex connector, cable length 40mm	�
COMe Mount Kit 5mm 1set 38017-0000-00-5		COM Express Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions	�
COMe Mount Kit 5mm 100sets 38017-0100-00-5		COM Express Mounting Kit 5mm 100 sets	�
COMe Mount KIT 8mm 1set 38017-0000-00-0		COM Express Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions	�
COMe Mount Kit 8mm 100sets 38017-0100-00-0		COM Express Mounting Kit 8mm 100sets	�
DDR3L-1600 SODIMM 1GB 97015-1024-16-1		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800	�
DDR3L-1600 SODIMM 2GB 97015-2048-16-1		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800	�
DDR3L-1600 SODIMM 4GB 97015-4096-16-1		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800	�
DDR3L-1600 SODIMM 8GB 97015-8192-16-1		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800	�
DDR3L-1600 SODIMM 1GB E2 97015-1024-16-3		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C	�
DDR3L-1600 SODIMM 2GB E2 97015-2048-16-3		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C	�
DDR3L-1600 SODIMM 4GB E2 97015-4096-16-3		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C	�
DDR3L-1600 SODIMM 8GB E2 97015-8192-16-3		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C	�
DDR3L-1600 SODIMM 1GB ECC E2 97016-1024-16-3		DDR3 ECC SDRAM, 204pin, Speed= 800MHz / DDR3-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C	�
DDR3L-1600 SODIMM 2GB ECC E2 97016-2048-16-3		DDR3 ECC SDRAM, 204pin, Speed= 800MHz / DDR3-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C	�
DDR3L-1600 SODIMM 4GB ECC E2 97016-4096-16-3		DDR3 ECC SDRAM, 204pin, Speed= 800MHz / DDR3-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C	�
DDR3L-1600 SODIMM 8GB ECC E2 97016-8192-16-3		DDR3 ECC SDRAM, 204pin, Speed= 800MHz / DDR3-1600 / 1.35V / PC3-12800, industrial temperature -40�C to +85�C	�

Warranty

10-Day Inspection Period: If the COMe-bBL6 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.

30-Day Warranty: The 30-Day warranty for COMe-bBL6 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:

1. Repair

2. Replacement

3. Refund

** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**

All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.

Warranty Options:

Our Standard Warranty: Warranty may vary dependent on product and manufacturer.

No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.

Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
