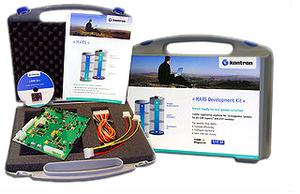

MARS Smart Battery Kit - Kontron
Call for Price / Availability 888.528.9233
- Part:
- MARS Smart Battery Kit
- Manufacturer:
- Kontron
- Description:
- Smart Battery platform
- Availability:
- Available: Submit request for datasheets and more information.
More and more manufacturers are depending on intelligent battery management solutions. Therefore, the main target of the 'MARS' development platform is to enable engineers to design their own mobile power supply with up to 60 W and with one or two smart batteries.
'MARS' features four function units that can be used whenever required:
From these function units the developer picks just the ones needed and leave out the elements not required.
Additionally 'MARS' can automatically switch from one voltage source to another within just a few microseconds, making it well suited as an uninterruptible power supply.
'MARS' is stored in the ACPI registries provided for the purpose using BIOS in Kontron ETX and COM Express modules.
Specifications
- MARS Starter Kit
- Input voltage range 5 VDC to 28 VDC
- Support for 2 Smart Batteries
- Ready-made modular buidling blocks for fast implementation in different customized solutions
- Proven layout and schematic documents
Features
| Dimensions (H x W x D) | 185 mm x 160 mm x 16,5 mm (7.28' x 6.3' x 0.65') |
| Battery bay | Applicable Smart Batteries: NiMH and NiCd up to 10S1P, e. g. 9S1P (10.8 V), 10S1P (12 V) Li-Ion and LiPo up to 4S3P, e. g. 2S2P (7.2 V), 3S3P (10.8 V), 4S3P (14.4 V) |
| Applicable Motherboards | Supported Products: Basic functions are supported by all Kontron ETX and COM Express, modules For key functions please have a look in the manual under Appendix D. |
| Outut Voltage Range | 12 VDC (max. 60 W), 5 V Standby, 5 VDC (max. 42.5 W), additional lines for: 3.3 V, -5 V, -12 V |
| Additional | MARS Development Kit: MARS platform, wire for ATX power connector, wire for ��feature connector� (SM-Bus), Y-wire power connector |
Datasheets
MARS Concept Folder
MARS Concept Folder including technical information - Mobile Application platform for Rechargeable Systems.
[ mars_concept_folder_w.pdf, 0.98 mb, Nov 27, 2013 ]
Manuals
MARS - Mobile Application platform for Rechargeable Systems - Manual
[ marsm004.pdf, 0.73 mb, Nov 27, 2013 ]
Whitepapers
MARS Fachartikel
MARS Fachartikel Markt & Technik, Nr. 39 vom 25.09.09
[ mars-fachartikel-markt-and-technik-september-2009.pdf, 0.09 mb, Nov 27, 2013 ]
Power Management
Intelligent Development Platform makes power management easier
[ mars_-power-systems_nov09.pdf, 1.51 mb, Nov 27, 2013 ]
MARS mobilizes Computer-on-Modules Applications
Intelligent Development Platform makes Power Management easier for COM-based Mobile Applications
[ mars-epdee_2009_december_pages_28-30.pdf, 0.31 mb, Nov 27, 2013 ]
Variants
| Smart Battery Kit 18029-0000-00-0 |  | MARS Development Kit | � |
