Part:: AM4120
Manufacturer:: Kontron
Description:: Processor AMC based on Freescale QorIQ P2020
Availability:: Available: Submit request for datasheets and more information.

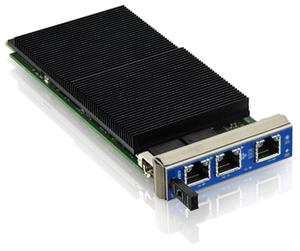

The Kontron AdvancedMC processor module AM4120 is equipped with the Freescale QorIQ P2020 Dual Core processor with up to 1.2GHz and based on the Power Architecture e500. Application reliability is ensured with features such as the redundant universal bootloader U-Boot and persistent memory for cycle data storage. Furthermore, a dedicated Module Management Controller (MMC), which supports basic IPMI commands, is used for board management, enabling operators to monitor the status of the AdvancedMC module in the system, simplifying system management and improving availability. The Kontron AdvancedMC processor module AM4120 also offers increased longevity due to Freescale۪s processor availability until at least 2018, careful component selection and a MicroSDHC card socket that is not impacted by regular flash discontinuation.

The universal Kontron AM4120 offers cost sensitive AdvancedTCA and MicroTCA system designs long- term availability, support of various fabrics and an extraordinary performance-per-watt ratio.

Specifications

Freescale QorIQ P2020 - dual core @1.2GHz
Up to 4GB RAM with ECC
3x GbE: AMC port 0 + 2x Front or port 0,1 + 1x Front
microSD card socket
Extended Temperature Range on project request
Useable in mangaged (with MCH) and unmanaged (without MCH) systems
Processor roadmap until 2018

Datasheets

AM4120 Datasheet
[ datasheet_am4120.pdf, 1.2 mb, Jan 25, 2016 ]

Datasheet Linux BSP D0401 for AM4120
[ datatsheet_lin_bsp_d0401_am4120.pdf, 1.12 mb, Jan 25, 2016 ]

Datasheet Wind River VxWorks BSP for D0401 platform
[ dat_vxw_bsp_d0401_01.pdf, 1.07 mb, Nov 27, 2013 ]

Manuals

AM4120 User Introduction Manual
[ 1045-6958_10_sk-man-am4120_introduction.pdf, 0.34 mb, Nov 27, 2013 ]

AM4120 User Manual [restrictions apply]
[ 1045-6958_10_sk-man-am4120.pdf, 0.75 mb, Nov 27, 2013 ]

AM4120 IPMI Firmware User Manual
[ 1045-9586_10_sk-man-am4120-ipmi-fw-ug.pdf, 0.33 mb, Nov 27, 2013 ]

AM4120 U-Boot Bootloader User Manual
[ 1046-1856_10_sk-man-u-boot.pdf-2, 0.29 mb, Nov 27, 2013 ]

Warranty

10-Day Inspection Period: If the AM4120 purchased doesn't fit your application requirements or for any other reason you are not satisfied with your purchase, we will refund 100% of the item's purchase price upon formal request for an RMA number within (10) days of receiving the equipment, provided the equipment is returned in the same condition as was originally sent.

30-Day Warranty: The 30-Day warranty for AM4120 covers the item for any kind of issue that was not pre-existing and mentioned in the Item Description and also starts the day the item is “shipped”. Evaluation of the item and formal request for an RMA number initiation must be completed within this 30-Day time limit. Once warranty is granted RMA must be completed AND ITEM SHIPPED within (10) business days or warranty will not be accepted. When the item has been received, the following solutions will be evaluated at our discretion:

1. Repair

2. Replacement

3. Refund

** Please contact your Sales Representative prior to shipping the item back, RMA must be filled out and included with return materials or return will NOT be accepted.**

All equipment returns require an RMA number. RMA numbers are valid for (7) business days after issuance. Shipments sent without a valid or current RMA number will be returned at customer's expense.

Warranty Options:

Our Standard Warranty: Warranty may vary dependent on product and manufacturer.

No Warranty: Will not accept returns for equipment designated "No Warranty" or “NCNR”.

Manufacturer's Warranty: Warranty is provided by the manufacturer. Warranty on Individual Product.
