- COMe-cPV2
- Manufacturer:
- Kontron
- Description:
- COM Express compact Type 2
- Availability:
- Available: Submit request for datasheets and more information.

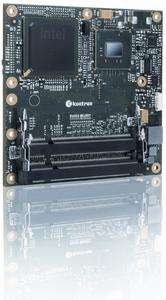

The Kontron COMe-cPV2 is a COM Express compact, Pin-out Type 2 Computer-on-Module with the second-generation Intel Atom, processor. With Intel��s highly integrated two-chip design, dual-core option, and cost-efficient processors, COMe-cPV2 modules accelerate the development of ultra-low-power embedded appliances. The COMe-cPV2 also is a drop-in replacement for Intel Pentium M based designs.
The Kontron COMe-cPV2 XT that boasts a rugged design rated for the extended temperature range of -40 to +85 �C. With the up to 4 GByte DDR3 system memory and high-performance Dual-Core Intel Atom, processor D525@ 1.80GHz, the Kontron COMe-cPV2 XT is a best-fit drop-in replacement for designs previously based on Intel Pentium M processors. OEMs benefit from a seamless migration path to energy efficient upgrades and extended usage models, thus increasing the long-term availability and investment security of their applications.
Specifications
- Intel Atom, D500/N400 Series
- Up to 2x2GB DDR2/DDR3 SODIMM dual channel
- COMe-cPV2 with DDR2 memory
- COMe-cPV2 XT with DDR3 memory and rated for Industrial Temperature Grade
Features
| Compliance | COM Express compact, Pin-out Type 2 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel Atom, D525 (2x1.80GHz, 13W, DDR3) Intel Atom, D510 (2x1.66GHz, 13W, DDR2) Intel Atom, D410 (1x1.66GHz, 10W, DDR2) Intel Atom, N450 (1x1.66GHz, 5.5W, DDR2) |
| Chipset | Intel ICH8M (82801HBM) |
| Main Memory | 2x DDR2-800 SO-DIMM up to 2x2GB 2x DDR3-800 SO-DIMM up to 2x2GB (D525 only) |
| Graphics Controller | Intel GMA3150 |
| Ethernet Controller | Intel 82567LM |
| Ethernet | 10/100/1000 Mbit Ethernet |
| Hard Disk | 3x SATA 3Gb/s 1x PATA |
| Flash Onboard | - |
| PCI Express / PCI support | 5x PCIe x1 1x PCI |
| Panel signal | DDI1: - DDI2: - DDI3: - VGA: Yes LVDS: Single Channel 18bit |
| USB | 8x USB 2.0 |
| Serial | - |
| Audio | Intel High Definition Audio |
| Common Features | SPI, LPC, SMB, I_C, Watchdog, RTC, MARS |
| BIOS | AMI CORE8 |
| Humidity | 93% relative Humidity at 40�C, non-condensing (according to IEC 60068-2-78) |
| Options | - |
| Power Management | ACPI 1.0b/3.0 |
| Power Supply | 5V - 18V Wide Range, Single Supply Power |
| Special Features | - |
| Operating System | Windows 8, Windows 7, WES7, WEC7, Windows XP, XPe, Windows CE, Linux |
| Temperature | Commercial temperature: # 0�C to +60�C operating, -30�C to +85�C non-operating Industrial temperature: # -40�C to +85�C operating, -40�C to +85�C non-operating |
| Supported Modules | 36007-xxxx-xx-x: COMe-cPV2, commercial temperature 36009-xxxx-xx-x: COMe-cPV2XT, industrial temperature |
Datasheets
Datasheet COMe-cPV2
[ datasheet_come-cpv2.pdf, 1.48 mb, Sep 4, 2015 ]
Datasheet COMe-cPV2XT
[ datasheet_come-cpv2xt.pdf, 0.74 mb, Nov 5, 2014 ]
Manuals
microETXexpress-PV Manual (v1.4)
[ uetxe-pv_ug_v1-4.pdf, 2.85 mb, Nov 27, 2013 ]
microETXexpress-PV-XT Manual (v1.0)
[ uetxe-pv-xt_ug_v1-0.pdf, 3.16 mb, Nov 27, 2013 ]
Whitepapers
Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com.0-rev.-2.0_en.pdf, 2.21 mb, Nov 27, 2013 ]
Tech Spec Sheet
COM EXPRESS compact
[ tech-spec_comexpress-compact.pdf, 0.52 mb, Feb 29, 2016 ]
Variants
| COMe-cPV2 D525 XT 36009-0000-18-2 |  | COM Express compact pin-out type 2 Computer-on-Module with Intel Atom, D525 2x1.80GHz, ICH8M, 2x DDR3 SO-DIMM socket, industrial temperature | � |
| COMe-cPV2 D525 36007-0000-18-2 | | COM Express compact pin-out type 2 Computer-on-Module with Intel Atom, D525 2x1.80GHz, ICH8M, 2x DDR3 SO-DIMM socket | � |
| COMe-cPV2 D510 36007-0000-16-2 | | COM Express compact pin-out type 2 Computer-on-Module with Intel Atom, D510 2x1.66GHz, ICH8M, 2x DDR2 SO-DIMM socket | � |
| COMe-cPV2 D410 36007-0000-16-1 | | COM Express compact pin-out type 2 Computer-on-Module with Intel Atom, D410 1x1.66GHz, ICH8M, 2x DDR2 SO-DIMM socket | � |
| COMe-cPV2 N450 36007-0000-16-0 | | COM Express compact pin-out type 2 Computer-on-Module with Intel Atom, N450 1x1.66GHz, ICH8M, 2x DDR2 SO-DIMM socket | � |
Accessories

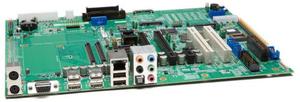

| COMe Eval Carrier T2 38104-0000-00-1 |  | COM Express Evaluation Carrier Type 2 | more |

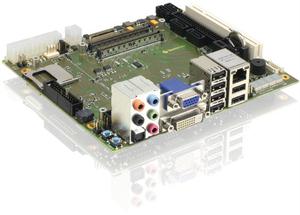

| COMe Ref. Carrier T2 38102-0000-00-1 |  | COM Express Reference Carrier Type 2 | more |
| HSP COMe-cPV2 thread 36007-0000-99-0 | | Heatspreader for COMe-cPV2, threaded mounting holes | � |
| HSP COMe-cPV2 through 36007-0000-99-1 | | Heatspreader for COMe-cPV2, through holes | � |
| HSK COMe-cPV2 active thread 36007-0000-99-0C01 | | Active cooling solution for COMe-cPV2, threaded mounting holes | � |
| HSK COMe-cPV2 passive thread 36007-0000-99-0C02 | | Passive cooling solution for COMe-cPV2, threaded mounting holes | � |
| COMe Mount Kit 5mm 1set 38017-0000-00-5 | | COM Express Mounting Kit 5mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 5mm 100sets 38017-0100-00-5 | | COM Express Mounting Kit 5mm 100 sets | � |
| COMe Mount KIT 8mm 1set 38017-0000-00-0 | | COM Express Mounting Kit 8mm 1set for threaded HSP and Cooling Solutions | � |
| COMe Mount Kit 8mm 100sets 38017-0100-00-0 | | COM Express Mounting Kit 8mm 100sets | � |
| DDR2-667 SODIMM 1GB x16 97011-1024-67-8 | | DDR2 SDRAM, 200pin, Speed = 333MHz / DDR2-667 / PC2-5300, validated for Pineview | � |
| DDR3-1600 SODIMM 1GB E2 97015-1024-16-2 | | DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3-1600 / PC3-12800, industrial temperature -40�C to +85�C | � |
